모형: HWX9000U
상표: OEM 주문 가능
Origin: 중국
전원: 유압
신청: ATV / UTV
전압: 24V, 12V
포장: 수출용 상자
수송: Ocean,Air
원산지: 중국
포트: NINGBO,SHANGHAI
지불 유형: L/C,T/T,D/P
인 코텀: FOB,CFR,CIF

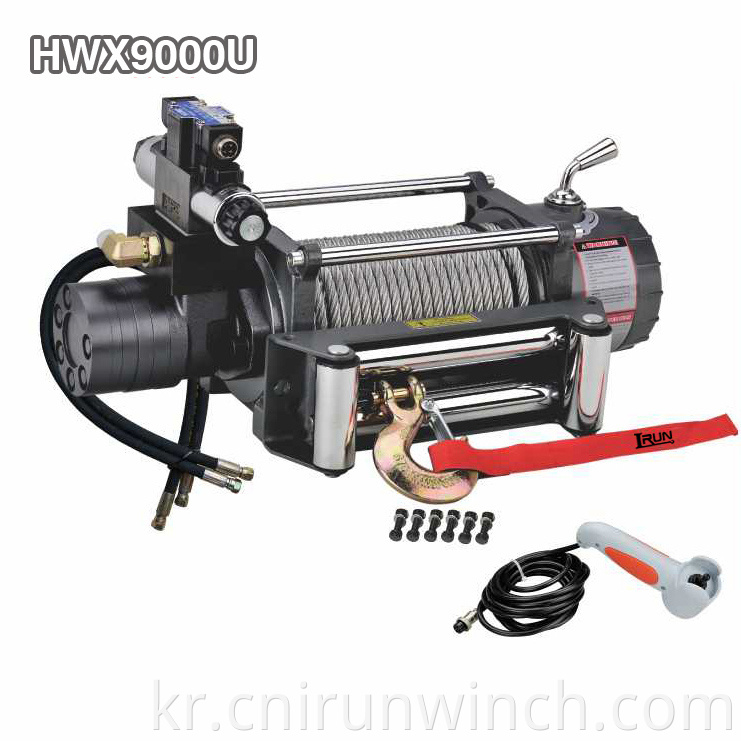

9000 lbs 유압 윈치 품목 번호 HWX9000U 다음과 같은 뛰어난 기능을 갖춘 모터에 전기 밸브가 설치되었습니다.
특징:
| SPECIFICATION | |
| Rated line pull | 9000 lbs (4082kgs) |
| Motor: permanent magnet | 65ml/r |
| Oil Flow | 5~45L/min |
| Pressure | 9Mpa |
| Gear reduction ratio | 28:1 |
| Cable (Dia.× L) | Ø21/64 “×95′ (Ø8.3mm×29m) |
| Drum size (Dia.× L) | Ø2.48″×8. 8″ (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
|
Line pull lbs (kgs) |
Pressure Mpa(Psi) |
Flow G/min (L/min) |
Line speed ft/min(m/min) |
|
0(0) |
2.0(290.1) |
1.3(5) |
1.6(0.5) |
|
4000(1814) |
3.6(522.1) |
2.6(10) |
3.9(1.2) |
|
6000(2722) |
6.5(942.7) |
5.3(20) |
8.2(2.5) |
|
8000(3629) |
8.5(1232.8) |
9.2(35) |
14.1(4.3) |
|
9000(4082) |
9.0(1305.3) |
11.9(45) |
18.7(5.7) |
|
Layer of cable |
Rated line pull lbs(kgs) |
Total rope on drum ft (m) |
|
|
1 |
9000(4082) |
20.0(4.8) |
|
|
2 |
7452(3380) |
44.3(11.1) |
|
|
3 |
6358(2884) |
72.2(18.3) |
|
|
4 |
5544(2515) |
95.1(29.0) |

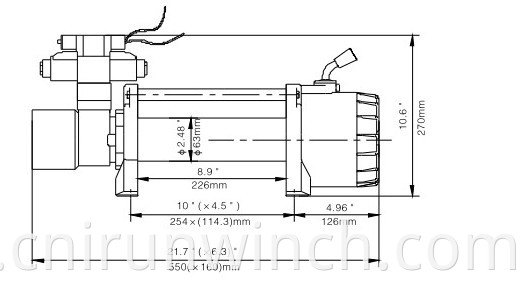

| ITEM | HWX9000A | HWX9000U | |
| Overall dimensions | 21.7″×6.9″×8.5″ | 21.7″×6.9″×10.6″ | |
| (L×W×H) | 550mm×174mm ×217mm | 550mm×174mm ×270mm | |
| Net weight (Ibs) | 87.2 | 87.7 | |
| (kgs) | 40.5 | 40.7 |

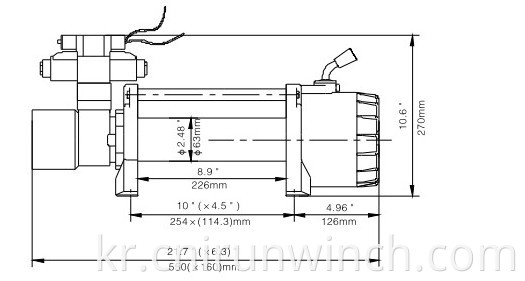

전체 치수 21.6″ x 6.3″ x 10.6″
(가로 x 세로 x 높이) 550mm x 160mm x 270mm
순중량 40.5 킬로그램
제품 디렉토리 : 유압식 4WD 윈치 > 유압 4x4 윈치
